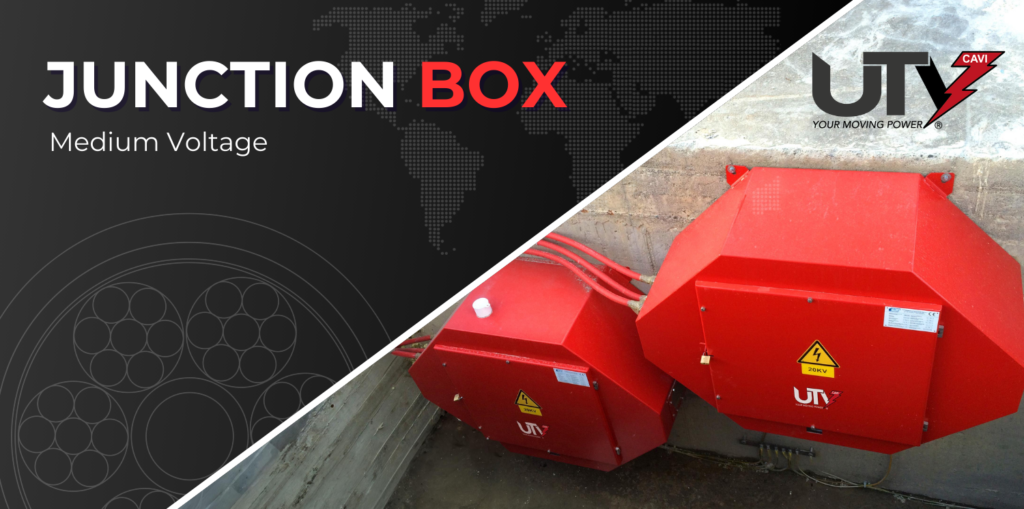

High Protection, High Performance:The Charactheristics of the Junction Boxes
Introduction:
The Medium Voltage Junction Boxes are a fondamental electronic equipment used in the grid to connect MT voltage. They are also an important interconnection and protection point. They are usually made with different material, i.e. Iron, that offers durability and protection against weathering.
Description of Junction Boxes
The Medium Voltage Junction Boxes are a normalized structure suitable for junction and derivation of M.V. cables with a rated voltage of up to 24 Kv. They could be with or without optical fibres. Moreover medium voltage steel junction boxes are designed to ensure safe and reliable operation of the electrical network, providing a critical point of connection and protection for medium voltage cables. The presence of optical fiber in boxes with such technology also allows for data transmission for monitoring, control, and management purposes of the electrical network, enhancing overall system efficiency and reliability.
The junction boxes are designed in compliance with the International IEC and European. The installation of MV junction boxes is for outdoor environmental conditions max 50 ° C and min -50 ° C and a degree of protection IP66. can guaranteea perfect protection even in the worst environmental conditions.
TECHNICAL FEATURES OF JUNCTION BOXES
Physical description:

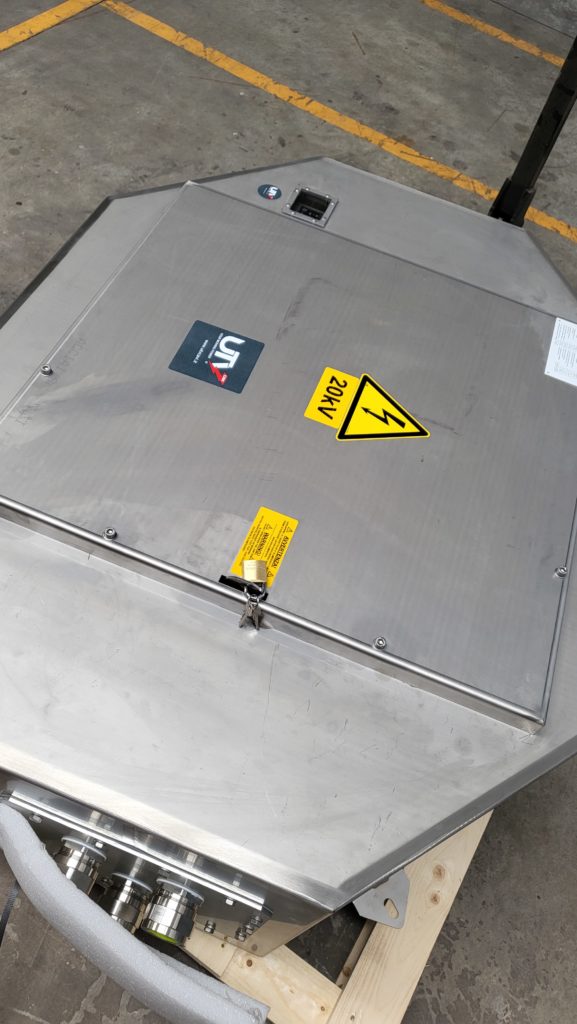

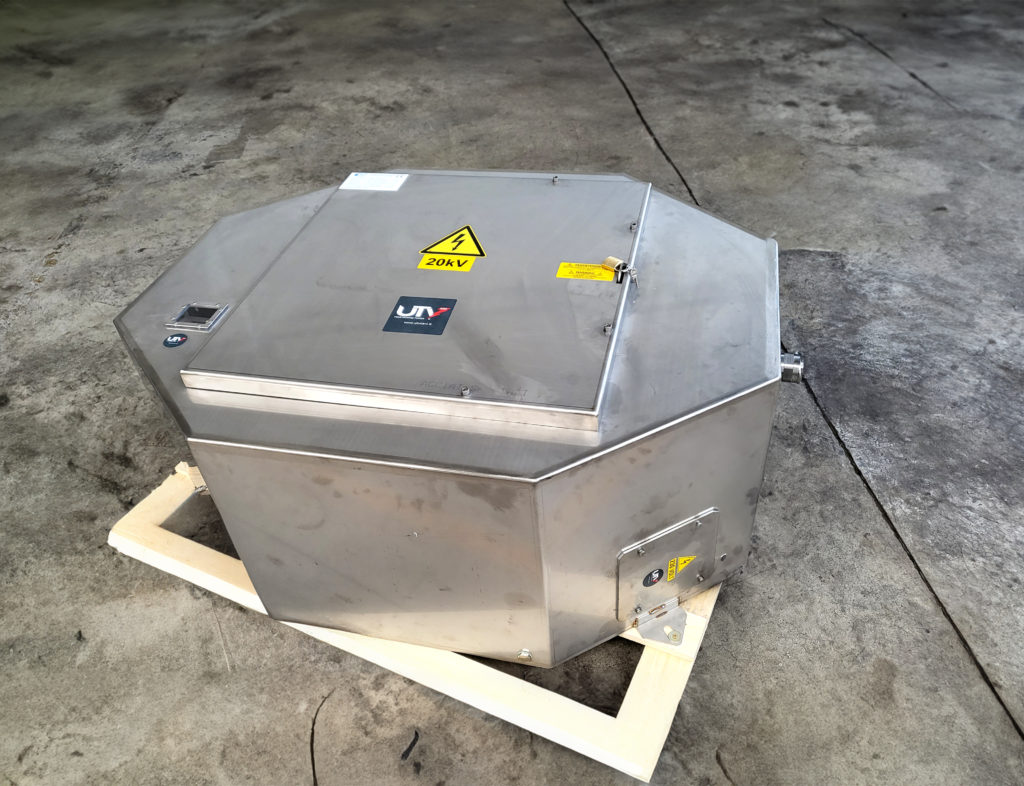

The junction box is typically a sturdy and durable steel structure designed to contain and protect internal components from external damage. It can come in various sizes depending on the number of cables to be connected and installation specifications.
in case of Junction box with optical fibers is Similar to the junction box without optical fiber, but with additional components and channels specifically designed to accommodate and protect optical fiber cables.
Tecnical features:
Designed to better respond to severe mechanical stress. Manufactured for outdoor or tunnel installations Safe for personnel and operation, with protection from contact with live parts. Free-standing and ready for use
Inside the junction box:
Inside the junction box, there are terminals or connectors to link the medium voltage cables. These connectors are designed to ensure safe and reliable electrical contact, minimizing energy losses. in the version with optucal fibers In addition to terminals or connectors for medium voltage cables, the junction box also includes elements for managing and distributing optical fiber cables.
Protection:
The box is designed to offer protection against moisture, dust, and other contaminants that could damage internal components and compromise the safety and reliability of the network. Like the junction boxes without optical fiber, the box with optical fiber offers protection against atmospheric agents and a secure locking system to ensure access only to authorized personnel.
Channels in case of optic fibers:
The box may be equipped with channels or conduits specially designed to guide and protect optical fiber cables, minimizing the risk of mechanical damage or bending that could compromise fiber optic performance.
In both cases, medium voltage steel junction boxes are designed to ensure safe and reliable operation of the electrical network, providing a critical point of connection and protection for medium voltage cables. The presence of optical fiber in boxes with such technology also allows for data transmission for monitoring, control, and management purposes of the electrical network, enhancing overall system efficiency and reliability.
Conclusion:
In conclusion, the juction boxes of M T are a fundamental element inside the electrial grind with such technology also allows for data transmission for monitoring, control, and management purposes of the electrical network, enhancing overall system efficiency and reliability. In compliance with the International IEC and European and thanks to the possibilitity of integration with optical fiber these boxes with such technology also allow to offers high performance that can improve the electrical grind system efficiency.
UTV… NOT ONLY CABLES!
More over that the cables, we want to make you discover anothe product in our catalogue: The juction Boxes Yes, we are known principally for our excellent cables, but we cannot stop here. the juction boxes are the perfect complemet for Medium tension cables, guarantee a safe connection in the electric grind.
Imagine that you can have all the necessary elements for a higher performance and a more efficient electric grind in a clic check our web site: www.utvcavi.com The junction boxes not only complete our cables offers, but increase their performances, guarantee a stable and safer connection.
Explore our online catalogue Juction Boxes in utv cavi catalogue can improve your electrical infrastructure. We are here to oiffer complete solution for your needs
Download here the technical sheet of JUNCTION BOX – UTV CAVI
For all information, latest news and new products, please visit our web site.
