PANZERFLEX-ELX
(N)TSCGEWÖU

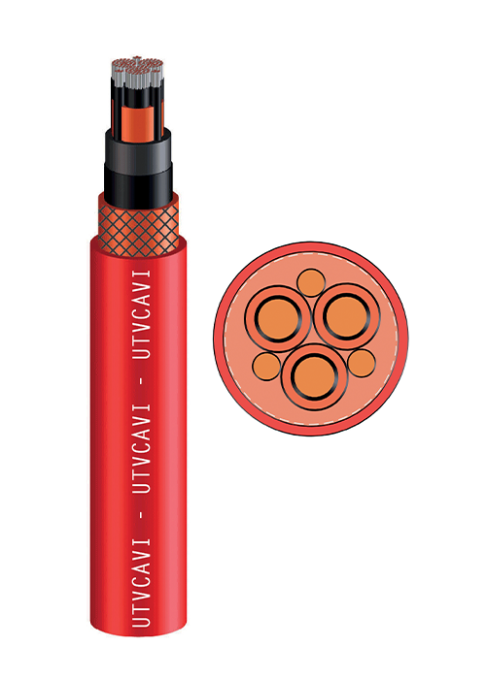

Cable description PANZERFLEX-ELX
Flexible H.V. reeeling power cables for use on connecting movable parts of machine tools and any material handling equipment (i.e. Stacker/reclaimer, ship to shore crane, container crane, excavators, also suitable for festoon sistem). Perfectly suitable for any energy supply on cable reels systems associated from high to extreme mechanical stresses, frequent bending/torsional operation and fast movement with strong acceleration.
TECHNICAL SPECIFICS
Tinned copper conductor, flexible cl.5 IEC 60228, specially designed for mobile application
2Insulation:Micro filtered HEPR rubber compound better than 3GI3. New specially developed compound with improved electrical and mechanical characteristics
3Cores identification:Main cores: natural colour with black semiconductive layer
Splitted earth cores: identified by position and covered with special black semiconductive compound
4Control Field:Conductor screen: semiconductive layer
Insulation screen: semiconductive layer of special compound applied with insulation
5Identification:Printed numbers on semiconductor layer
6Laying-up:Short lay length for better flexibilty and mechanical characteristics ≤ 8 times the laying-up cores diameter, three cores design with protective earth cores split in 3 intersticial areas
7Separation (if any):Tape(s)
8Inner sheath:Polychloroprene rubber based compound. Special developed with improved mechanical characteristics
9Antitwisting protection:Textile braid of synthetic yarns. Firmly bonded between inner and outer sheath
10Marking:U.T.V. CAVI manufactured BY PALAZZO - PANZERFLEX-ELX rated voltage nc x cross section year of manufacturing
| rated-voltage | Uo/U= 3,6/6 kV to 12/20 kV* |
| max-voltag-ac | Um = 7,2 kV to 24 kV |
| test-voltage | 11 kV to 29 kV according to VDE 0250 part 813 |
| current-carrying-capacity | According to DIN VDE 0298 part 4 |
| tensile-load | Up to 20 N/mm2 |
| minimum-bending-radii | According to DIN VDE 0298 part 3 |
| reeling-operation | No restriction. Consult the manufacturer if speed exceeds 180 m/min |
| festoon-systems | Up to 120 m/min |
| fully-flexible-operation | - 30 °C |
| fixed-installation | - 40 °C |
| max-temp-conductor | 90 °C |
| short-circ-temp | 250 °C |
| resistance-to-oil | According to IEC 60811-404 |
| weather-resistance | Unrestricted use outdoor and indoor, UV resistant, moisture resistant. |
