UTVFLEX®-R MT/ RS MT
(N)TSCGEWÖU
Cable description UTVFLEX®-R MT/ RS MT
Flexible medium voltage reeling cable NTSCGEWÖU (UTVFLEX®-R MT/ RS MT) for high and extreme mechanical stresses, e.g. torsional stress, deflection into different planes and high reeling speed. Also usable for reeling application in underground and opencast mining.

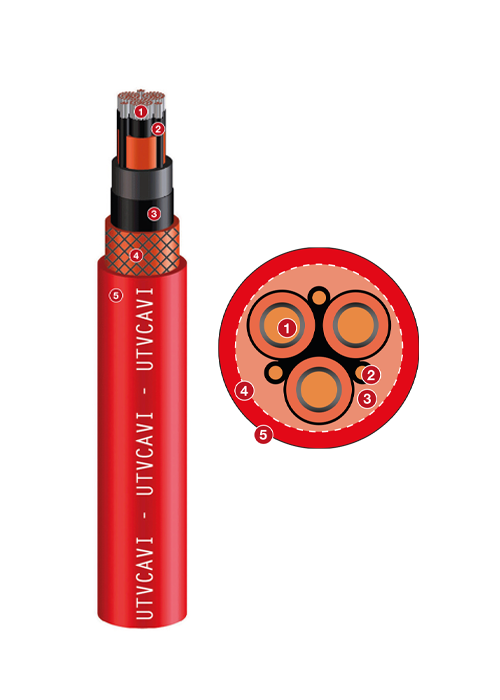

TECHNICAL SPECIFICS
MATERIAL: Tinned copper
CONSTRUCTION: Class 5 VDE 0295 (IEC 60228), special construction for higher flexibility
INSULATION MATERIAL: 3GIG quality rubber compound, according to VDE 0207 Part 20.
SEMICONDUCTIVE LAYERS: Semiconductive tape over the conductor and inner and outer semiconductive rubber layer on the insulation
2Earth conductors:MATERIAL: Tinned copper
COSTRUCTION: Class 5 VDE 0295 (IEC 60228) special construction for higher flexibility
COVERING MATERIAL: Semiconductive layer
Central Filler:MATERIALE: Semiconductive compound on textile polyester support
Cores Assembly:ASSEMBLY : Twisted cores with earth conductor split into 3 parts
SEPARATOR ON THE TWISTED ASSEMBLY: Semicoductive tape wound on the twisted cores
3Inner Sheath:MATERIAL: Gm1b/ 5GM5 quality rubber compound, according to VDE 0207 Part 21
4Antitwisting Element:MATERIAL: Polyester braid between inner and outer sheath
5 Outer Sheath:MATERIAL: 5GM5 quality rubber compound, according to VDE 0207 Part 21
COLOUR: Red
