BASKETHEAVYFLEX

3GRDGÖU

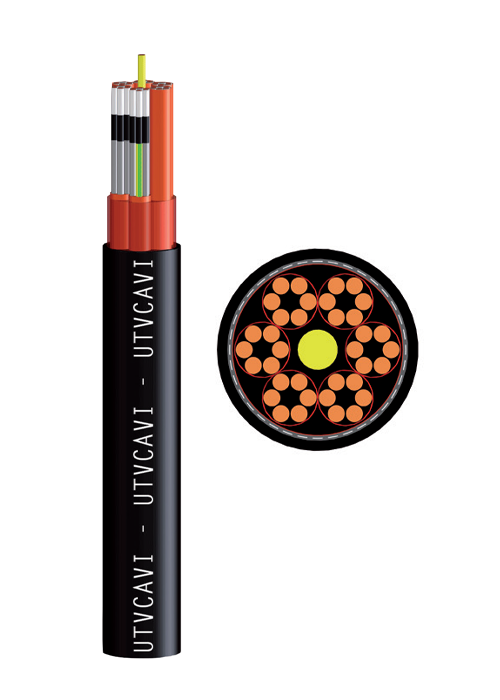

Cable description BASKETHEAVYFLEX

For vertical operation with high mechanical stress, suitable to be collected in gravity-fed collector basket.


TECHNICAL SPECIFICS

1 Conductors:

Tinned copper conductor, flexible Cl. 5 IEC 60228. Specially designed for mobile application

2Insulation:

EPR compound better than 3GI3. Specially developed compound with improved mechanical characteristics

3Identificazione dei Conduttori:

Black printed numbers+ 1 green/yellow. Each cores consecutively numbered

4Bundle:

Six cores layed-up with suitable tape(s)

5Central Strainer:

CENTRAL KEVLAR®, to be used as support element with a minimum tensile strengh of 10 kN

6Laying-up:

Short lay length for better flexibility ≤ 8 times the laying -up bundle diameter

7Separation(if any):

Tape (s)

8Inner sheath:

Polychloroprene rubber based compound Better than GM1b

9Antitwisting protection:

Synthetic yarns, firmly bonded between inner and outer sheath

10Outer Sheath:

Special CSP compound, high density specially developed compound UV resistant, lubrificant resistant

11Marking:

U.T.V. CAVI manufactured BY PALAZZO - BASKETHEAVYFLEX 0.6/1 KV n. of bundles x cross section

test-voltage 2,0 kV
tensile-load Up to 15 N/mm2 with minimum 4000 N
working-speed Up to 160 m/min
fully-flexible-operation - 25 °C
fixed-installation - 40 °C
max-temp-conductor 90 °C
resistance-to-oil Resistance to oil According to VDE / IEC standard
weather-resistance Unrestricted use outdoor and indoor, UV resistant, moisture resistant.
