UTVFLEX®-R MT/ RS MT FO
(N)TSCGEWÖU

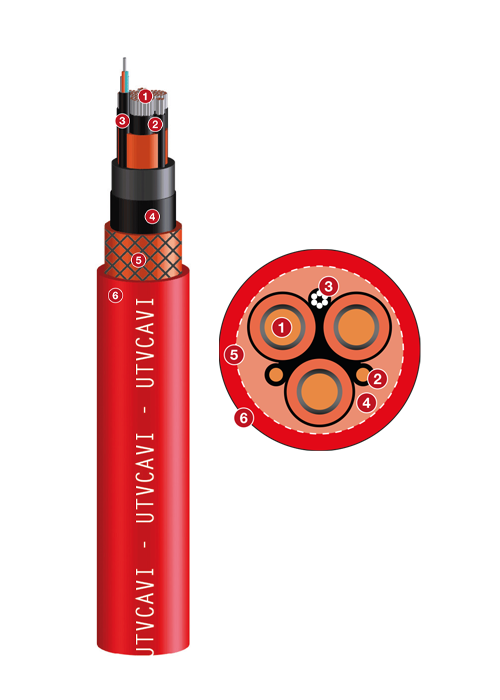

Cable description UTVFLEX®-R MT/ RS MT FO
Flexible reeling cable with integrated fibre optics wire for high and extreme mechanical stresses, e.g. Torsional stress deflection into different planes and high reeling speed. Also usable for reeling application in underground and opencast mining.
TECHNICAL SPECIFICS
MATERIAL: tinned copper
Class 5 VDE 0295 (IEC 60228), special construction for higher flexibility
INSULATION MATERIAL: 3GIG quality rubber compound, according to VDE 0207 Part 20.
SEMICONDUCTIVE LAYERS: semiconductive tape over the conductor and inner and outer semiconductive rubber layer on the insulation
2Earth conductors:MATERIAL: tinned copper
CONSTRUCTION:class 5 VDE 0295 (IEC 60228) special construction for higher flexibility
COVERING MATERIAL: semiconductive layer
3Fibre Optics:FIBRE: Trasmission data kind 50/125 multimode, 62.5/125 multimode, 9/125 singlemode
NOMINAL NUM. APERTURE:250 µm
FIBRE ARRANGEMENT COVERING:special rubber compound over the twisted cores
Central Cradle:MATERIAL: semiconductive compound
Cores Assembly:ASSEMBLY: twisted cores with earth conductor split into 2 parts+ FO
SEPARATOR ON THE TWISTED ASSEMBLY: semiconductive tape wound on the twisted cores.
4Inner Sheath:MATERIAL: Gm1b/ 5GM5 quality rubber compound, according to VDE 0207 Part 21
5Antitwisting Element:MATERIAL: polyester braid between inner and outer sheath
6Outer Sheath:MATERIAL: 5GM5 quality rubber compound, according to VDE 0207 Part 21
COLOUR: Red
