UTVFLEX®-TM MT
MEDIUM AND LOW VOLTAGE NSSHÖU O/J /3E...+ST
Cable description UTVFLEX®-TM MT
Flexible reeling cable (UTVFLEX®-TM MT) with reduced weight and dimensions for high and extreme mechanical stresses, e.g. torsional stress, deflection into different plasens and high reeling speed.

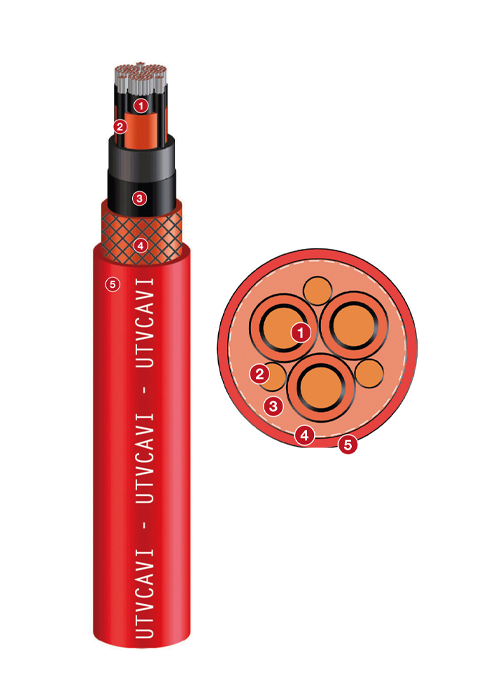

TECHNICAL SPECIFICS
MATERIAL: tinned copper
CONSTRUCTION: class 5 VDE 0295 (IEC 60228)*
INSULATION MATERIAL: 3GI3 quality rubber compound,according to VDE 0207 parte 20
SEMICONDUCTIVE LAYER: semiconductive tape over the conductor and inner and outer semiconductive rubber layer on the insulation.
2Earth conductors:MATERIAL: tinned copper
CONDUCTORS CONSTRUCTION: class 5 VDE 0295 (IEC 60228)*
COVERING MATERIAL: semiconductive layer
Central Filler:MATERIAL: semiconductive compound on textile polyester support
Cores Assembly:ASSEMBLY: ctwisted cores with earth conductor split into 3 parts
SEPARATOR ON THE TWISTED ASSEMBLY: semiconductive tape wound on the twisted cores.
3Inner Sheath:MATERIAL: Gm1b/5GM5 quality rubber compound, according to VDE 0207 Part 21
THICKNESS: according to VDE 0250 part 813 (table 2)
4Antitwisting Element:MATERIAL: polyester braid between inner and outer sheath
5 Outer Sheath:MATERIAL: 5GM5 quality rubber compound, according to VDE 0207 Part 21
THICKNESS: according to VDE 0250 part 813 (table 2)
* Special construction for higher flexibility
