UTVFLEX® PUR- TM HF
MEDIUM AND LOW VOLTAGE NSSHÖU O/J /3E...+ST
Cable description UTVFLEX® PUR- TM HF
Power supply ti mobile equipment with high risk of mechanical damage in mining and tunneling. Due to without anti-twisting protection, is suitable for application where it is deflected in one plane only Maximum speed 60m/min 60 m/min.

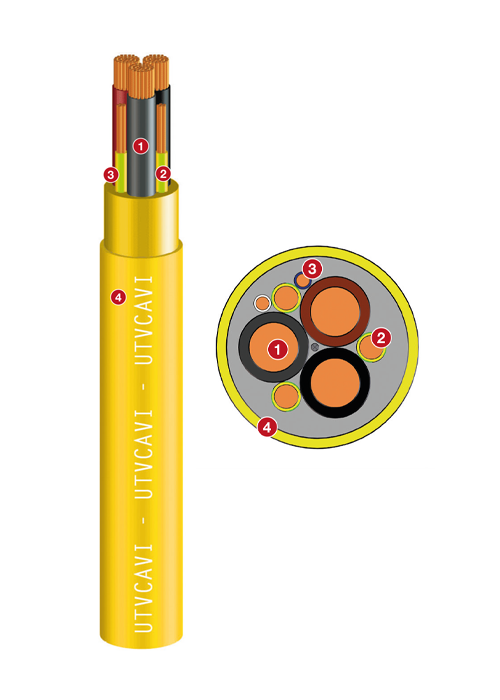

TECHNICAL SPECIFICS
MATERIAL: plain copper
CONSTRUCTION: flexible cl.5 according to IEC 60228
INSULATION: XLPE special compound, Brown-Black- Grey
2Earth Cores:MATERIAL: plain copper
CONSTRUCTION: flexible cl.5 according to IEC 60228
INSULATION: XLPEspecial compound. Green/ Yellow
3 Control Cores (if any):MATERIAL: tinned copper
CONSTRUCTION: class 6 according to IEC 60228
INSULATION: thin thickness made of a special tecnopolymer
COLOUR: white with printed number or new colour code white-blue
4Outer Sheath:MATERIAL: HFFR* thermoplastic polyurethane compound, abrasion, tear, chemical & hydrolysis resistant
COLOUR: yellow
STANDARD REFERENCE:based on UC specification
*Halogeen free and flame retardantOther cables for this Type of use:
