UTVFLEX®-S
NSHTÖU-J/O, (N)SHTÖU-JZ/-OZ
Cable description UTVFLEX®-S
Flexible power cables for use on connecting movable parts of machine tools and any material handling equipment (i.e. Stacker/reclaimer, ship to shore crane, container crane festoon, grabtype ship unloading, gantry festoons, timber crane festoons, etc.). Suitable for any energy supply on cable reels and festoon systems associated to high mechanical stresses, frequent bending/torsional operation, and fast movement with strong acceleration.
TECHNICAL SPECIFICS
MATERIAL: Tinned copper
CONSTRUCTION: flexible cl 5 IEC 60228

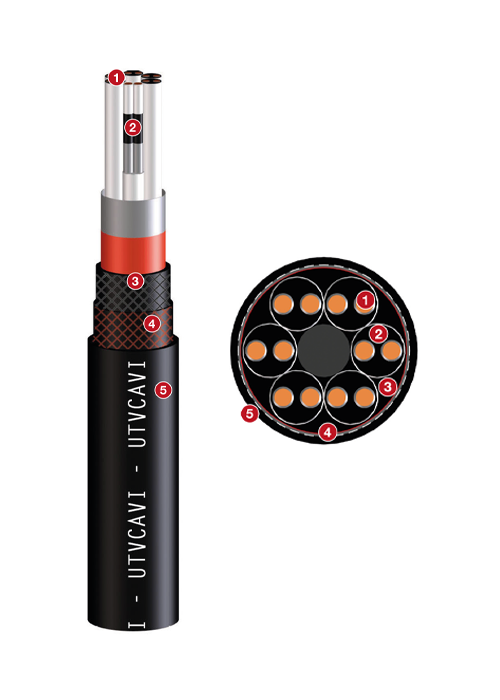

2Insulation:MATERIAL: EPR compound better than 3GI3
Identification Cores:
Black with printed numbers with o without 1 green/yellow
Each core consecutively numbered
Schield: (on single core or pair)
Tinned copper braid screen
At least 70% on cores
At least 80% on pairs
Pairs:
Two cores layed-up Textile filler in the interstices to mantein good geometrical characteristics
Laying-up:
Short lay length for better flexibility
≤ 7 times the laying-up cores diameter (in maximum 3 layer for multicores cables)
Separation:
Tape(s)
3Inner SheathPolychloroprene rubber based compound better than GM1b
4Antitwisting Element:Synthetic yarns, firmly bonded between inner and outer sheath
5 Outer Sheath:Black polychloroprene rubber compound Uv resistant oil and chemical resistant better than 5GM2
| rated-voltage | Uo/U= 0,6/1 kV |
| test-voltage | 4 Kv |
| max-ac-voltage | 0,7/1,2 Kv |
| max-dc-voltage | 1,8 kV |
| current-rating | According to VDE 0298 Part 4 |
| minimum-bending-radii | According to DIN VDE 0298 part 3 |
| maximum-torsional-stress | ±25 °/m |
| tensile-load | 30 N/mm2 |
| working-speed | 180 m/min |
| special-test | Reeling test |
| max-work-temp | 90 °C |
| minimum-ambient-temperature | Mobile condition: –40 °C Static condition: –50 °C |
| resistance-to-oil | According to IEC 60811-404 |
| ozone-resistance | According to IEC 60811-403 |
| burning-behaviour | According to IEC 60332-1-2 |
| gas-emission | According to IEC 60754-1 |
